1999 PW 5 For Sale N18PW

$20,000.00 with Original Open Trailer

JP Ducos 210-667-3716 E-mail: fly@learn2soar.net

470 Hrs total time, no 337 or incidents, well equiped

equippement:

* ASI * PZL Mechanical Vario * Cambridge electronic Vario * Altimeter

*Microair Radio/Transceiver, with dinamic Boom Microphone *Terra transponder

*Optional: Cambridge 25 logger/Gps with Screen Data director with latest software update, (sealed by cambridge and ready for X-Country*

Clean Canopy, and fair to good gelcoat. Just annualed* Flies great.

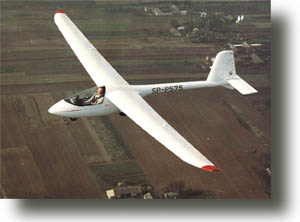

PW-5 World Class Glider

"The new FAI World-Class."





world class glider The PW-5 glider is the winner of the World Class Glider Competition organized by Federation Aeronautique Internationale. The competition requirements were simple but safe design and good performances. This glider is to be introduced into a series production in order to popularize gliding all over the world. A new class of gliders will be established (i.e. Wordl Class); in competitions held in this class all pilots will have equal chances. It is one more step closer towards having gliding as one of the events in the Olympic Games. The design of the PW-5 glider was developed by a team of scientists and students of Technical University of Warsaw under the supervision of Roman Switkiewicz. The production of the glider was placed in WSK "PZL-Swidnik" S.A. This factory has not only many years experience in manufacturing of gliders made of epoxy-glass composites but also produces withit`s 5000 emploeeys helicopters, medical equippment and components for the international aviation industry.

Technical Data:

Wing span

Wing area

Aspect ratio

Fuselage length

Overall height

Height at the tail unit

Empty weight

Max. weight

Weigth of the single wing

Max. speed

Min. speed

Best glide ratio (at V = 80 km/h)

Min. sinking (at V = 73 km/h)

Sinking at V = 100 km/h

Sinking at V = 140 km/h

G limits

13,44 m

10,16 mē

17,80m

6,22m

1,82m

1,28m

185 kg

300 kg

36 kg

220 km/h

62 km/h

33

0,64 m/s

1,0 m/s

2,2 m/s

+5,3/-2,65
